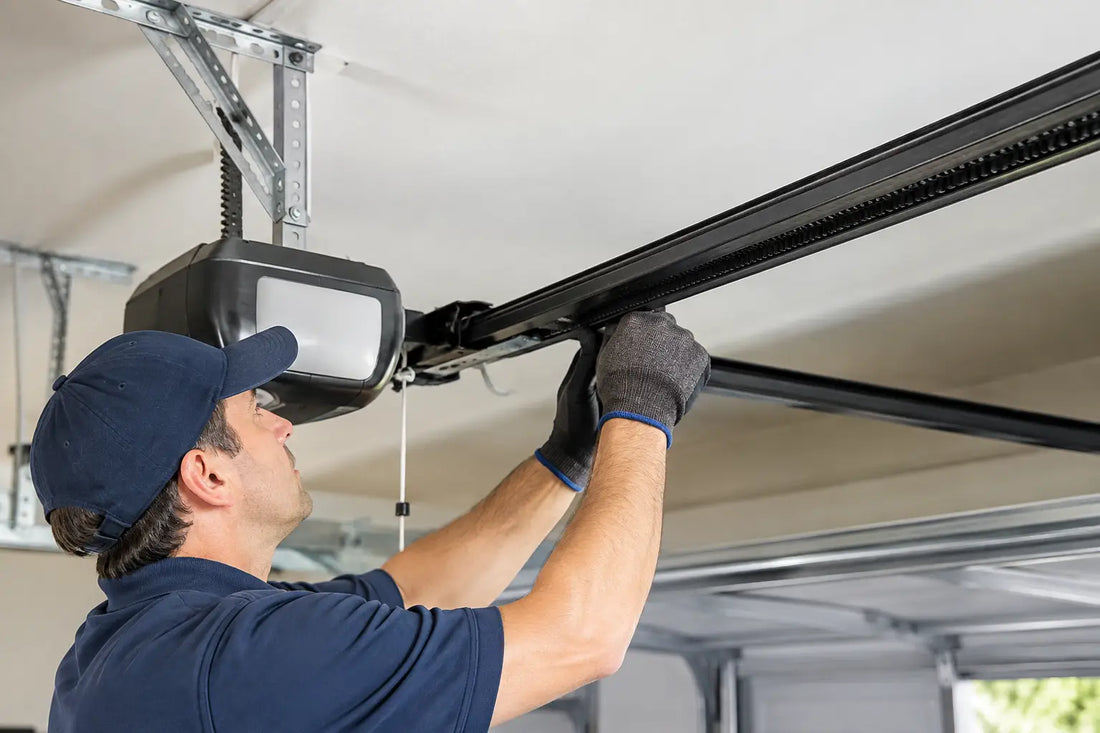

When Garage Door Opener Rails Need Replacement
A garage door opener can have a good motor and still run poorly if the rail is damaged, loose, or incompatible. Opener rails guide the trolley that pulls the door open and pushes it closed, so their condition directly affects travel, noise, and strain on the entire opener system. When the rail is not right, the door may jerk, bind, stop short, or make more noise than it should.
The rail is often treated as a simple piece of metal. It is not. It is a matched component in the opener assembly, designed to work with a specific drive system, trolley, motor head, and door height. Choosing the correct replacement rail can restore smooth travel. Choosing the wrong one can create installation problems and put unnecessary load on the opener.
What Garage Door Opener Rails Do
The opener rail runs from the motor unit at the rear of the garage to the header bracket above the door. Inside or along that rail, a chain, belt, or screw drive moves the trolley. The trolley connects to the door arm, transferring the opener's movement to the garage door.
A straight, properly supported rail keeps that movement controlled. The trolley should travel without catching, rocking, or scraping. If the rail flexes or shifts, the drive system has to work harder. That can lead to premature wear on the trolley, sprocket, belt, chain, gear assembly, and door arm connection.
Rail condition also affects noise. A loose joint, bowed center section, or worn trolley can produce rattling and vibration that sounds like an opener problem. Sometimes the motor is not the source of the noise at all. The rail is transferring vibration through the ceiling supports and garage structure.
Signs Your Opener Rail Has a Problem
A visibly bent rail is an obvious reason to replace it, but many rail issues are less clear. Watch for a trolley that sticks in one spot, a chain that slaps or runs unevenly, or a belt that tracks poorly during operation. Grinding, popping, and repeated metal-on-metal clatter can also point to a rail, trolley, or rail joint issue.
Pay attention to changes in door travel. If the door reverses for no clear reason, stops before it fully opens, or closes with a hard jerk near the floor, inspect the rail and its mounting points. The opener may be sensing excess resistance caused by a misaligned trolley path.
A rail that hangs low in the middle is another warning sign. This commonly happens when the rail is not properly supported or when an installation was assembled with loose hardware. A sagging rail can cause the trolley to bind, especially on longer rails used with 8-foot or taller doors.
Do not assume every travel issue is a rail failure. A garage door with broken rollers, damaged tracks, worn hinges, or poor spring balance can overload the opener and create similar symptoms. Disconnect the opener using the emergency release only when the door is fully closed, then move the door by hand. A balanced door should lift smoothly and stay near its halfway point without dropping or racing upward. If it does not, correct the door problem before replacing opener components.
Opener Rails Must Match the Opener
The most common buying mistake is treating garage door opener rails as universal. They are not. Rail profiles, trolley designs, couplers, drive connections, and mounting hardware vary by manufacturer and model. Even rails that look similar can have different connection points or internal drive arrangements.
Before ordering a rail, identify the opener brand, model number, drive type, and door height. The model number is normally on the motor housing. Also confirm whether the existing rail is a one-piece assembly or a sectional rail that joins in the middle. This information matters because the replacement must connect correctly to the motor unit and work with the matching trolley and drive system.
Door height is equally important. A standard residential garage door is typically 7 feet tall, while many garages use 8-foot doors. Taller doors require a longer rail and often a matching extension kit. Installing a standard rail on a taller door can prevent the door from opening fully and may damage the drive system when it reaches the end of its travel.
If the opener is older, a complete rail assembly may be harder to match than a current model part. In that situation, compare the cost and condition of the existing opener. Replacing the rail can make sense when the motor, controls, safety sensors, and drive components are otherwise in good condition. If multiple major components are worn, a complete opener replacement may be the more reliable repair.
Chain, Belt, and Screw Drive Rail Differences
Chain-drive openers use a chain that travels along the rail. They are dependable and common, but chain tension and trolley wear should be checked if operation becomes noisy. Some chain systems use an enclosed rail, while others have a chain running below the rail. The replacement parts must match that design.
Belt-drive openers use a reinforced belt for quieter operation. The rail may look similar to a chain-drive rail, but the trolley and drive connection are different. Never substitute a chain-drive rail or trolley onto a belt-drive opener unless the manufacturer specifically designed the parts to work together.
Screw-drive systems use a threaded steel rod inside the rail. They have fewer moving components in the rail assembly, but the screw and trolley must be clean, properly lubricated when required, and correctly aligned. A damaged screw-drive rail can cause skipping, chatter, or inconsistent travel.
Check the Supports Before Replacing the Rail
A good rail can still perform badly when the installation is poorly supported. The header bracket must be secured to structural framing, not just drywall or thin trim. The motor head should be supported from the ceiling with appropriate angle iron or a rated support system. Loose mounting hardware allows movement that can bend the rail or make the entire opener shake.
Inspect the rail-to-motor connection and any center joint on a sectional rail. Tighten loose fasteners, but do not force stripped or damaged hardware. Look for cracked brackets, enlarged holes, or missing bolts. If a rail section is bent at a joint, tightening it will not restore proper alignment. Replace the damaged part or the complete assembly.
The door arm also matters. A bent door arm or loose clevis pin can make the trolley appear faulty. With the door closed, inspect the connection between the trolley, straight arm, curved arm, and top door bracket. The hardware should be secure, with no severe wear at pivot points.
Installation Basics That Prevent Repeat Problems
Replacing an opener rail is manageable for an experienced DIY homeowner, but it is not a shortcut repair. Disconnect power to the opener before removing the motor unit or rail assembly. Keep the garage door fully closed and secured during the work. Do not loosen, adjust, or remove garage door springs, lift cables, or bottom brackets. Those components are under high tension and require proper tools and training.
Assemble the replacement rail on a clean floor, following the specific opener instructions. Make sure every rail section is fully seated before tightening the joint hardware. A small gap at a connection can become a major vibration point once the opener starts cycling.
Set the rail at the correct height and keep it straight from the header to the motor head. The rail should not bow, twist, or hang unsupported. Install the door arm as specified for the opener and door style, then reconnect the trolley and restore power.
After installation, set the open and close travel limits and test the safety reversal system. Place a solid object such as a 2-by-4 flat on the floor under the door. When closing, the door should reverse after contacting it. Also verify that the photo-eye sensors stop or reverse the door when the beam is interrupted. These tests are part of a proper repair, not optional finishing steps.
Reduce Rail Noise Without Replacing It
If the rail is straight and compatible, noise may be solved with maintenance rather than replacement. Tighten rail supports, header hardware, and motor mounting bolts. Check the trolley for wear and confirm the chain or belt is adjusted to the opener manufacturer's specification. An over-tightened chain can create excess noise and wear just as easily as a loose one.
Then look beyond the opener. Worn steel rollers, dry hinges, loose track bolts, and an unbalanced door all send vibration into the rail. Quality rollers and targeted noise-control upgrades can make a noticeable difference because they address movement at the door itself. The Garage Door Center's Silencer Kit is designed for this type of performance improvement, reducing vibration and metal-on-metal contact where garage door noise often begins.
A quiet, dependable opener starts with a door that moves freely and a rail that guides the trolley without resistance. Match the rail to the opener, support it correctly, and correct door balance issues before they damage the drive system. That approach prevents a small rail problem from turning into a failed opener at the worst possible time.
