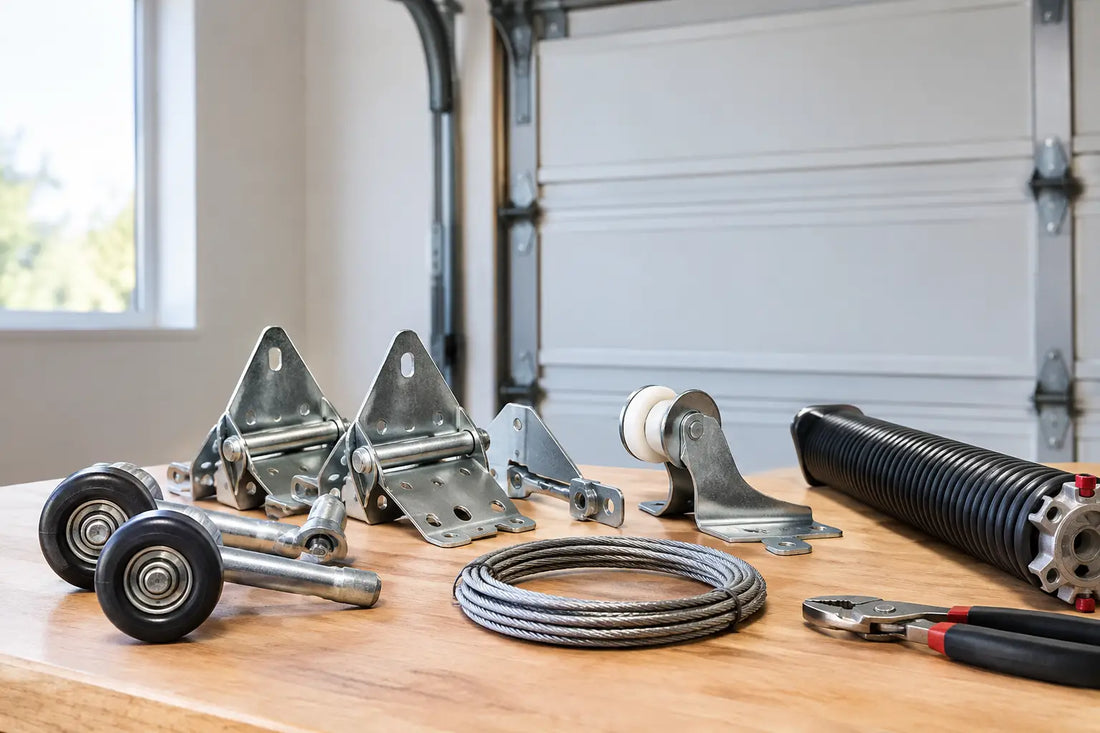

OEM Garage Door Hardware Guide for Better Repairs

A garage door that squeals, shakes, reverses unexpectedly, or leaves a roller hanging out of the track is rarely fixed for long with a generic part chosen by appearance alone. This OEM garage door hardware guide helps you identify what belongs on your door, what can be upgraded, and where a wrong match can create a bigger repair.

The goal is not to replace every component at once. It is to correct the worn or failed part with hardware that fits the door’s weight, track system, and operating cycle. That means fewer callbacks, less noise, and a door that moves the way it should.

What OEM-Grade Hardware Actually Means

OEM refers to original equipment manufacturer. In garage door repairs, the term is often used two ways: a part made by the same manufacturer that supplied the original component, or a replacement built to the same dimensions, material standards, and operating requirements.

The second definition matters most when the original part is unavailable or discontinued. A quality OEM-grade replacement should match the function and fit of the existing hardware without forcing modifications to the track, hinge locations, cable system, or opener setup.

That does not mean every part needs to carry the same brand name as the door. Garage doors are assemblies. The door sections, hinges, rollers, tracks, springs, cables, drums, and opener may come from different manufacturers. What matters is correct specification.

A poorly matched roller may be the right diameter but wrong stem length. A hinge may look identical but have a different offset. A spring may physically fit the shaft while providing the wrong lift. Those details determine whether the repair lasts.

Start With the Part That Is Causing the Problem

Before ordering hardware, identify the failure point. Noise does not automatically mean the opener is failing. A door that binds does not automatically need new springs. Watch the door through one full open-and-close cycle from a safe distance, and look for a clear symptom.

Grinding or rattling often points to worn steel rollers, loose hinges, track issues, or vibration between metal components. A door that jerks in one area of travel may have a damaged roller, bent track, worn hinge, or failing bearing. A door that feels unusually heavy when disconnected from the opener usually has a spring or cable problem.

Check for visible wear at the rollers, hinge knuckles, top fixtures, cables, bottom brackets, and tracks. Look for cracked nylon, flattened roller wheels, elongated hinge holes, frayed cable strands, loose fasteners, and track seams that have shifted out of alignment.

Do not treat lubrication as a fix for damaged hardware. Proper garage door lubricant can reduce friction at hinges, rollers, and springs, but it cannot restore a roller with a worn bearing or a hinge that has developed excessive play.

OEM Garage Door Hardware Guide: Match These Details

The right replacement begins with measurements and identification, not a guess based on a product photo. Take clear photos of the installed part before removal, note any stamped numbers, and measure the features that affect fit.

Rollers

Garage door rollers are commonly available with 1-inch, 2-inch, or 3-inch wheels, though residential sectional doors most often use 2-inch rollers. Stem length is equally important. Common residential stem lengths include 4-inch, 7-inch, and 9-inch options.

Nylon rollers are a practical upgrade for homeowners who want smoother, quieter movement. Models with sealed bearings generally handle higher cycle use better than basic no-bearing rollers. Steel rollers can be durable, but they are typically louder and may transmit more vibration through the door and track.

Do not install a longer stem simply because it looks stronger. The stem must sit correctly in the hinge or top fixture and allow the roller to follow the track without binding.

Hinges and top fixtures

Sectional door hinges are numbered because each position creates a different roller offset as the door travels through the curve of the track. A number 1 hinge is not interchangeable with a number 2 or 3 hinge. Replacing a hinge with the wrong number can pull a door section out of proper alignment.

Match the hinge number, leaf size, hole pattern, gauge, and roller tube position. If the original hinge has cracked around the roller tube or screw holes, inspect the surrounding door section as well. A replacement hinge will not hold securely in damaged or stripped material without additional repair.

Top fixtures deserve the same attention. Adjustable top brackets affect how the top section seals against the header and enters the horizontal track. Use a matching replacement when possible, and adjust carefully to avoid creating excess pressure on the door or track.

Cables, drums, and bottom brackets

Lift cables are not universal. Their length, diameter, end type, and construction must match the door height and spring system. Frayed, kinked, rusted, or unraveling cable should be replaced promptly. A cable failure can leave the door crooked, jammed, or unsupported on one side.

Cable drums must also match the shaft size, cable type, lift configuration, and door height. Standard-lift, high-lift, and vertical-lift systems use different drum profiles. Mixing them can cause uneven cable winding and poor balance.

Bottom brackets carry high spring tension through the lift cable. Never remove or loosen a bottom bracket while the springs are under tension. This is not a basic homeowner repair. If a cable has come off a drum or a bottom bracket is damaged, secure the door and call a qualified garage door technician.

Springs and related hardware

Torsion and extension springs are the most specification-sensitive components in the system. Correct spring selection depends on door weight, height, track radius, cable drum type, shaft diameter, spring inside diameter, wire size, length, wind direction, and desired cycle life.

A spring that is too strong can cause the door to rise on its own or strain the opener while closing. A spring that is too weak makes the door heavy and forces the opener to work beyond its intended load. Matching only the old spring’s length is not enough, especially if the original spring was already incorrect.

Extension spring systems require safety cables. Torsion spring adjustments and replacements involve stored energy and should be handled by trained professionals with the correct tools.

When an Upgrade Makes More Sense Than a Like-for-Like Replacement

A direct OEM replacement is usually the right call for broken hinges, damaged fixtures, worn cables, and properly specified springs. Upgrades make sense when they solve a persistent performance issue without changing the door’s operating geometry.

For example, replacing old steel rollers with high-quality nylon bearing rollers can reduce rolling noise and vibration. Adding a Silencer Kit can help address metal-on-metal contact, instability, and vibration that travel through the track and door sections. This is especially useful when the door is structurally sound but loud enough to disturb rooms near or above the garage.

Heavier-duty hinges may be appropriate for a frequently used door, but only when the hinge number and dimensions match. Higher-cycle springs can be a smart investment for households that use the garage as the primary entrance. The trade-off is higher upfront cost, not a change in immediate lifting power.

Do not upgrade by mixing random heavy-duty parts into a worn system. A premium roller cannot compensate for bent track, loose flag brackets, or an unbalanced door. Correct the underlying issue first.

Check Compatibility With the Whole Door System

Garage door hardware works as a connected system. After installing a replacement part, test more than the part itself. With the door closed, inspect track mounting, roller seating, hinge fasteners, cable routing, and clearance around the top fixtures.

If it is safe to do so and the door has no spring or cable concerns, disconnect the opener using the emergency release and move the door manually. A properly balanced door should stay near the halfway point without rapidly rising or falling. It should travel smoothly without scraping, jumping, or binding.

Reconnect the opener and confirm the safety reversal system works as intended. Also check the force settings only after mechanical issues are corrected. Increasing opener force to push through a binding door masks the problem and can damage the opener, door, or hardware.

Avoid the Most Common Replacement Mistakes

The fastest way to turn a small repair into a recurring problem is to buy by appearance alone. Hardware that looks close can still have the wrong gauge, offset, stem length, or load rating.

Avoid replacing only one roller when the rest are equally worn, unless damage was clearly isolated. Avoid installing a new hinge over stripped screw holes without addressing the damaged section. Avoid reusing a cable that has been pinched or frayed. And never assume a spring is correct because the door has operated with it in the past.

For any part under spring tension, any cable-off condition, or any door that will not stay open or closed on its own, stop and get professional help. The cost of correct service is lower than the cost of an injury or a damaged door.

A well-chosen OEM-grade part should disappear into the operation of the door. The door rolls quietly, closes evenly, and stops demanding attention. Start with accurate measurements, fix the component that actually failed, and let the rest of the system tell you whether a targeted upgrade is worth adding.
