Garage Door Center Bearings: What to Know
A garage door can have new rollers, a properly adjusted opener, and fresh lubricant yet still sound rough or run unevenly. The problem may be at the torsion shaft above the door. Garage door center bearings support that shaft at its midpoint, helping the springs and drums turn smoothly as the door opens and closes.
It is a small part with a big job. When the center bearing is worn, seized, incorrectly sized, or missing, the torsion system can bind, create vibration, and put added stress on springs, cables, and the opener. Knowing what this bearing does makes it easier to diagnose noise and choose the correct replacement.
What Garage Door Center Bearings Do
A typical residential torsion system has a steel shaft running across the header above the garage door. Torsion springs mount on that shaft, with cable drums positioned near each end. As the door moves, the shaft rotates and the drums wind or unwind the lift cables.

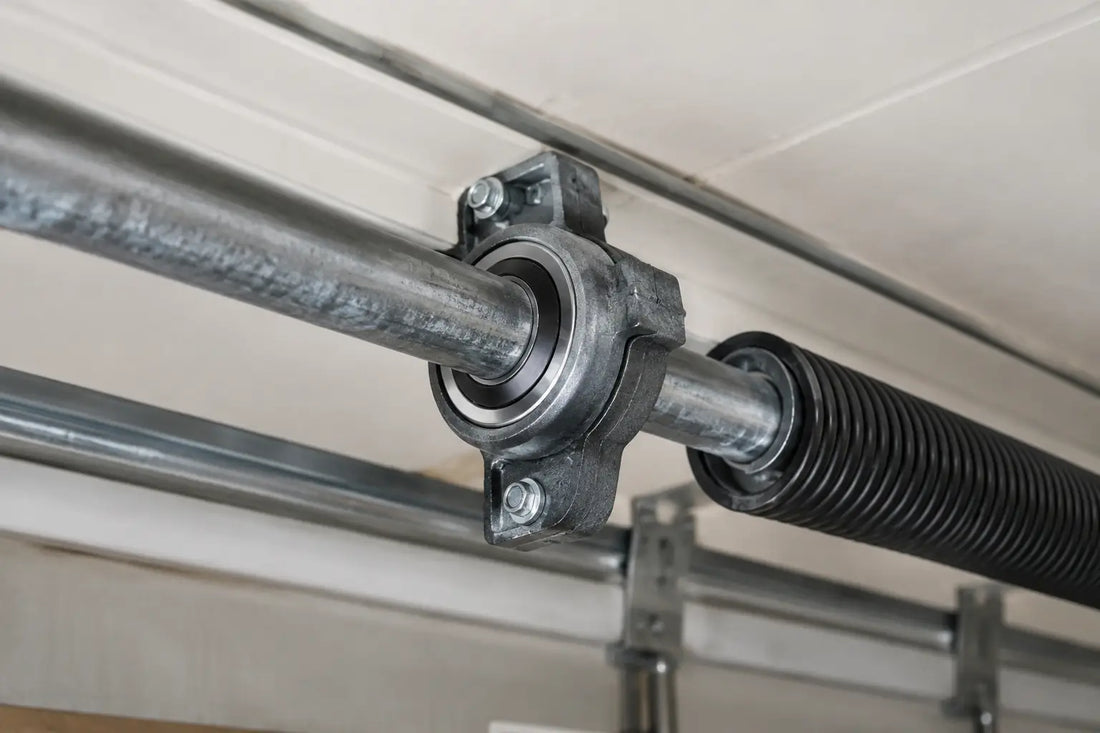

The center bearing supports the shaft where it passes through the center spring anchor bracket. It keeps the shaft aligned while allowing it to rotate. That support matters most on wider or heavier doors, where shaft flex and spring load can be significant.
Most center bearings are installed inside a stamped steel bearing plate or center support bracket. On many doors, the bearing has a 1-inch inside diameter to fit a standard 1-inch torsion shaft. Do not assume that size, though. Measure the shaft and inspect the existing bracket before ordering. Older systems, commercial doors, and specialty hardware may use different dimensions.
A properly functioning bearing helps the shaft rotate with less drag. The practical result is smoother door travel, reduced vibration at the header, less strain on the opener, and fewer irritating metal-on-metal noises.
Center Bearing vs. End Bearing
The torsion shaft normally rides on more than one bearing. End bearing plates support the shaft at the outer edges of the door, near the cable drums. The center bearing supports it in the middle, usually between the torsion springs or directly at the spring anchor point.
All of these bearings matter, but they do not fail in exactly the same way. A worn end bearing can create noise near one side of the door or make a cable drum rotate poorly. A failed center bearing often produces noise or resistance closer to the middle of the header. It may also allow the shaft to sag slightly, especially on a wide door.
Replacing only the visibly damaged part is usually the right call. However, if one bearing is badly worn, inspect the other shaft supports while the system is being serviced. Similar age, dirt exposure, and lack of lubrication can affect all of them.
Signs a Center Bearing Needs Attention
Center bearings usually do not announce themselves with one obvious symptom. The door may still open, but operation becomes louder, less consistent, or harder on the rest of the hardware.
Watch for these common warning signs:
- Scraping, grinding, or squealing from the center of the torsion shaft
- Visible wobble, sagging, or excessive shaft movement at the center bracket
- A door that jerks or hesitates despite good rollers and properly aligned tracks
- Rust, cracked housing material, missing bearing components, or dark metal dust around the bracket
- An opener that sounds strained even when the door is balanced correctly
Why a Bad Bearing Creates Bigger Problems
A center bearing is designed to let the torsion shaft turn freely while holding it in position. When it drags, the shaft has to fight that resistance every time the door moves. That extra friction can transfer through the entire system.
The opener may pull harder than necessary. Springs can wind and unwind less smoothly. Cable drums may not rotate as cleanly, which can contribute to uneven cable behavior in a system that already has alignment issues. The door may also transmit more vibration into the header and framing, creating the rattling sound many homeowners hear inside adjacent rooms.
A bearing replacement will not solve every noisy-door problem. If the tracks are bent, rollers are worn, hinges are loose, or the opener is vibrating against the ceiling, those issues need attention too. But replacing a failed center bearing removes one critical source of drag from the torsion system.
Choosing the Right Replacement Center Bearing
The correct part starts with fit. Measure the outside diameter of the torsion shaft and compare it with the bearing's inside diameter. A standard residential torsion shaft is commonly 1 inch, but matching by assumption is how ordering mistakes happen.
Also inspect how the bearing is mounted. Some center brackets use a replaceable bearing inserted into the plate. Others use a bearing plate assembly, and some older setups may use a bushing-style support rather than a conventional bearing. If the bracket is bent, cracked, heavily corroded, or no longer holds the bearing securely, replacing the complete center support assembly may be the more reliable repair.
Material and build quality matter. A low-grade bearing can develop play or roughness early, particularly in garages with dust, moisture, temperature swings, or frequent door cycles. OEM-quality replacement parts are a better choice for doors that operate several times a day or support insulated, oversized, or heavy wood doors.
Before buying, confirm these details: shaft diameter, bearing outside diameter, bracket style, and whether the current bearing is actually removable. Clear measurements save time and prevent a repair from stalling halfway through.
Can You Replace a Center Bearing Yourself?
The bearing itself is simple. The torsion spring system around it is not.
Replacing a garage door center bearing generally requires releasing spring tension, securing the torsion shaft, and removing or repositioning components attached to the spring anchor bracket. Torsion springs store substantial energy. Incorrect tools, improper winding-bar use, or loss of control during tension release can cause severe injury or property damage.
For experienced garage door technicians, this is standard service work. For a homeowner with basic repair skills but no torsion-spring experience, this is usually a job to leave to a qualified professional. Replacing rollers, tightening loose hardware, or installing a noise-reduction upgrade can be practical DIY maintenance tasks. Working directly on loaded torsion springs is a different risk level.
If you are inspecting the system yourself, keep the door closed, do not loosen set screws or spring hardware, and do not attempt to move the shaft by force. You can safely look for visible damage, note the bearing size, and identify where the noise occurs before arranging service or selecting parts.
Reduce Noise Without Chasing the Wrong Part
A quiet garage door comes from a system that is supported, aligned, and maintained as a whole. Center bearings help the torsion shaft rotate smoothly, but they work alongside rollers, hinges, end bearings, spring hardware, tracks, and the opener.
Start by locating the noise. A sharp clatter at each panel joint points more toward hinges or rollers. A rumble at the side of the header may indicate an end bearing or cable drum issue. A grinding or vibration-centered sound at the spring anchor area makes the center bearing a stronger suspect.
Once the failed component is identified, use a correctly matched replacement rather than trying to compensate with extra lubricant or opener-force adjustments. Lubricant may quiet a dry bearing temporarily, but it cannot repair a seized race, worn internal components, or a loose-fitting bearing in a damaged bracket.
For doors with persistent vibration, a targeted noise-reduction upgrade can also help address the movement and metal contact that ordinary lubrication does not fix. The best result is not just a quieter door for a week. It is a door that runs smoothly because each moving part is doing its job.
A center bearing is easy to overlook because it sits above the door and rarely gets attention until something sounds wrong. Check it when the torsion system is serviced, match the replacement carefully, and treat spring-related work with the respect it requires. That small support at the center of the shaft helps keep the entire door operating the way it should: smooth, quiet, and dependable.
