How Garage Door Cable Drums Keep Doors Balanced
A garage door that rises crooked, drops too quickly, or leaves a loose cable at one side has a problem that should not be ignored. Garage door cable drums are small but critical parts of a torsion spring system. They guide the lift cables as the shaft turns, helping both sides of the door move together through the full travel cycle.
When a drum is worn, mismatched, loose, or incorrectly set, the entire door system can lose balance. The result may be noisy operation, uneven lifting, damaged cables, bent tracks, or a door that will not open safely. Knowing what cable drums do makes it easier to identify the right replacement and recognize when a repair needs a trained technician.
What Garage Door Cable Drums Do

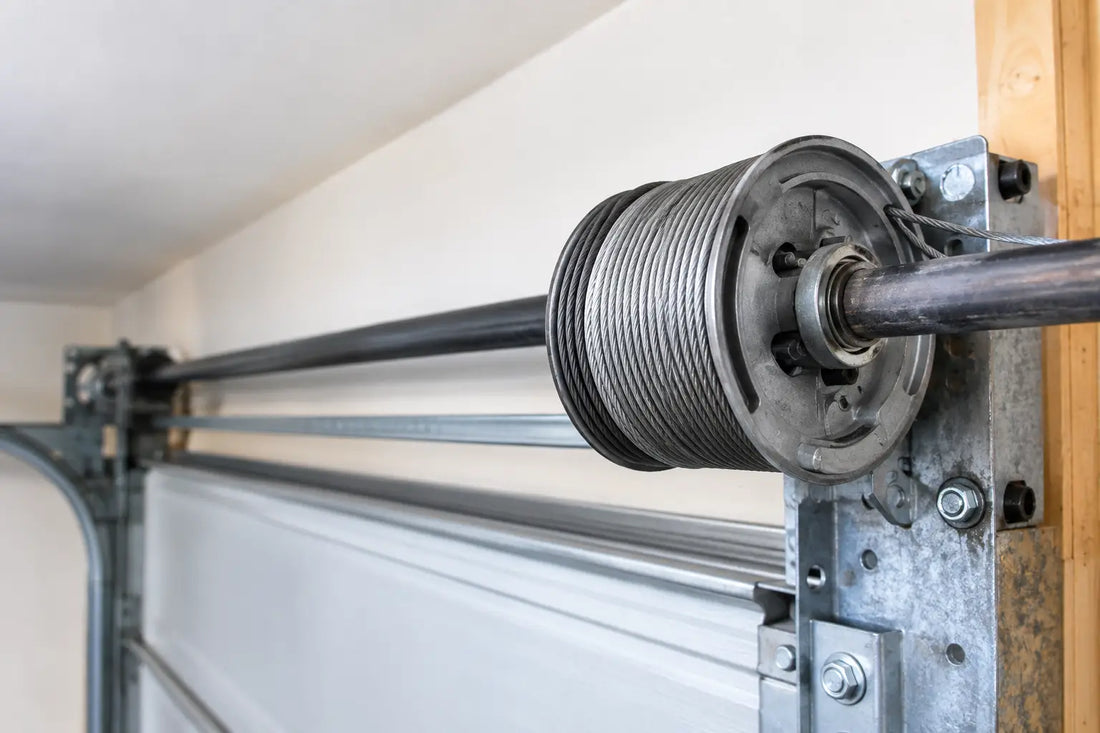

Cable drums sit at each end of the torsion shaft above the garage door opening. A lift cable attaches to the bottom bracket at the lower corner of the door, travels up the side of the opening, and wraps around its drum.
As the door opens, the torsion springs turn the shaft. The drums rotate with it and wind up the cables in controlled grooves. As the door closes, the cables unwrap while the door lowers. This controlled winding keeps cable tension consistent and helps the door stay level.
The drum does not create lifting force. That job belongs to the torsion springs. But it transfers that force to the cables. A properly matched drum ensures the cable wraps evenly instead of piling up, slipping off the grooves, or pulling harder on one side of the door.
That is why a garage door can have good springs and still operate poorly if its drums are damaged or wrong for the application.
Choosing the Right Garage Door Cable Drums
Cable drums are not universal. They are matched to the door's lift system, door height, track configuration, cable length, and spring setup. Ordering by appearance alone is a common and costly mistake.
A standard residential door with standard-radius tracks typically uses standard-lift drums. These drums are designed for the amount of cable required to raise a conventional 7-foot or 8-foot door. A high-lift door uses a different drum profile because it travels farther vertically before it curves back into the horizontal track. Vertical-lift and commercial applications require their own drum designs as well.
The drum's cable capacity matters just as much as its lift type. A drum intended for a 7-foot door may not safely manage the cable length needed for an 8-foot door. Installing the wrong size can leave loose cable wraps at the end of travel or create excessive tension before the door is fully open.
Before selecting replacement drums, verify these details:
- Your door height and the actual track layout, including whether the system uses standard, high-lift, or vertical-lift tracks.
- The drum markings, part number, or cable capacity stamped or cast into the existing part.
- The shaft diameter and the cable diameter used by the current system.
- Whether the left and right drums are specific to their mounting position and winding direction.
Signs a Cable Drum Needs Attention
Cable drums are durable metal components, but they are not maintenance-free. Wear usually appears after a cable comes off, a door is forced while out of level, a set screw loosens, or corrosion has been allowed to build up around the shaft and cable grooves.
Look for these warning signs during a visual inspection with the door closed:
- The door lifts unevenly, with one bottom corner rising before the other.
- A cable is loose, frayed, crossed, or riding outside the drum grooves.
- The drum has cracked flanges, sharp groove edges, visible distortion, or heavy corrosion.
- The door makes a sharp scraping, popping, or cable-slapping sound near the top corners during travel.
- The cable drum shifts on the shaft, or its set screws appear damaged or loose.
When Replacement Is the Right Move
Replace a cable drum when the grooves are worn enough to damage the cable, the flange is cracked or bent, the hub no longer secures properly to the shaft, or the drum is the wrong type for the door setup. A damaged drum can quickly ruin a new cable, so replacing only the cable may not solve the underlying issue.
If one drum has failed due to impact damage or a manufacturing defect, inspect the drum on the opposite side closely. They operate under the same number of cycles and often show similar wear. Replacing both as a matched pair can be the better long-term repair when both parts are aged or corroded.
There is a trade-off. If the opposite drum is clean, undamaged, and correctly matched, replacing it just because the other side was damaged may not be necessary. The decision should be based on condition and compatibility, not guesswork.
Cable Drum Repairs Carry Spring-System Risk
A cable drum replacement is not a casual hardware swap. The drums are attached to the torsion shaft, which is connected to springs carrying substantial stored energy. Releasing or adjusting tension incorrectly can cause the shaft, cable, or spring hardware to move with enough force to injure someone.
This is especially true when a cable has come off a drum. The door may be partly supported by one cable, the spring tension may be uneven, and the door can shift without warning. Never loosen drum set screws or spring hardware while the system is under tension unless you are trained and equipped for torsion spring service.
Homeowners can safely handle basic checks: disconnect the opener, keep people clear of the door, inspect for obvious cable damage with the door closed, and confirm that tracks and rollers are free of visible obstructions. Beyond that point, the repair often calls for professional service.
For technicians and experienced installers, proper drum work depends on securing the door, releasing and applying spring tension with the correct tools, setting equal cable tension, and testing door balance manually before reconnecting the opener. Skipping any of those steps can create a door that appears to work but wears cables, rollers, and springs prematurely.
Drums, Cables, and a Quieter Door
Cable drums are not usually the first part people blame for garage door noise. Rollers, hinges, track alignment, and opener vibration are more common sources. Still, a cable that rubs against a damaged groove or jumps between wraps can produce scraping and snapping sounds that should not be dismissed.
A quiet, stable door depends on the entire system working together. Correctly fitted drums keep cable movement controlled. Properly tensioned springs reduce strain on the opener. Quality rollers and vibration-reducing components address the metal-on-metal movement that travels through the door and framing.
If the door has recently become louder and also looks uneven in motion, inspect the cable path before treating the noise as a simple lubrication issue. Lubricant will not correct a cable that is climbing out of its drum grooves.
Can You Use Cable Drums on Any Garage Door?
No. Cable drums are used with torsion spring systems. Doors that use extension springs typically rely on pulleys and a different cable arrangement. Before ordering parts, look above the door opening. A torsion system has one or more springs mounted on a metal shaft with drums at both ends.
Should Cable Drums Be Lubricated?
The cable grooves generally should not be packed with grease. Heavy lubricant can collect dirt and interfere with clean cable wrapping. If the shaft or drum hub needs attention, use only the appropriate garage door lubricant sparingly and keep it away from cable surfaces and grooves. The priority is clean, undamaged components and correct tension.
A garage door should rise and close as one controlled unit, not as two sides fighting each other. If the cables are loose, the door is crooked, or the drums show damage, keep the door closed when possible and address the problem before it turns into a larger repair.
