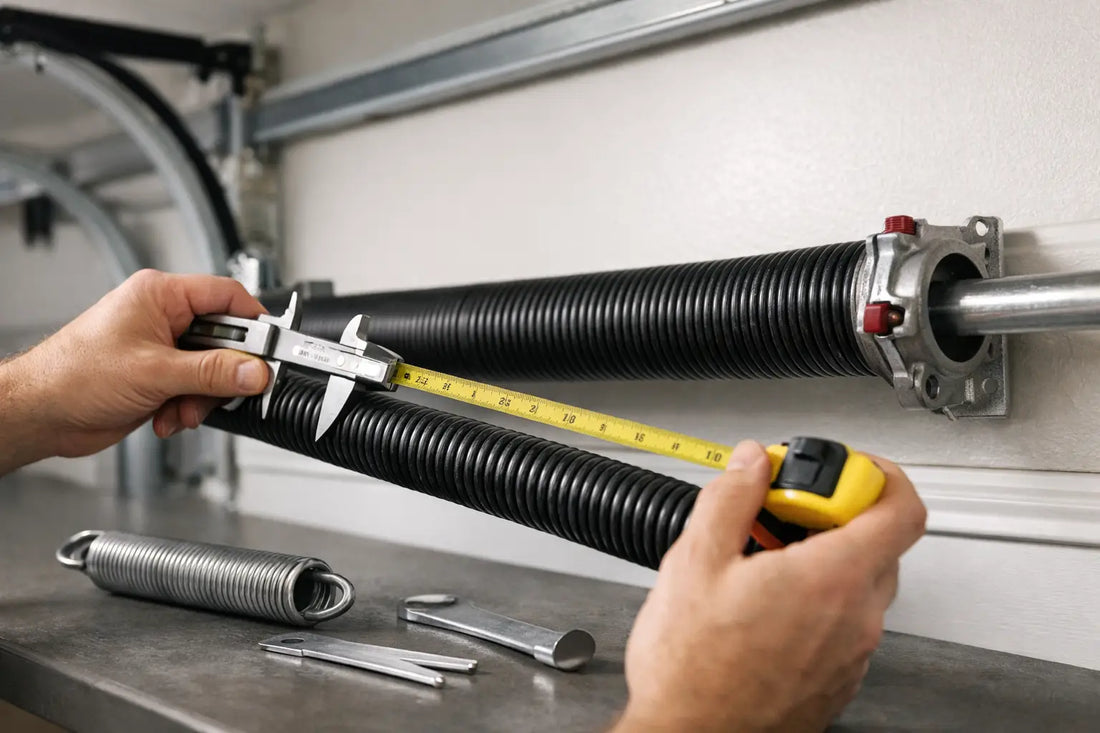

How to Measure Garage Door Springs
A garage door that feels heavy, jerks on the way up, or slams shut usually points back to the springs. If you are figuring out how to measure garage door springs, accuracy matters. A spring that is close but not exact can cause poor balance, extra wear on the opener, noisy operation, and a shorter service life.
The good news is that measuring springs is straightforward if you know what to look for. The process is different depending on whether you have torsion springs mounted above the door or extension springs running along the horizontal tracks. Before you order anything, identify the spring type, work carefully, and measure each dimension the same way every time.
Start by identifying the spring type
Most residential doors use one of two systems. Torsion springs sit on a shaft above the garage door opening. Extension springs stretch along the upper side tracks on both sides of the door. The measuring steps are not interchangeable, so this is the first thing to confirm.
Torsion springs are the more common setup on newer doors and heavier doors. They do most of the work by twisting under tension. Extension springs expand and contract as the door moves. If your springs are above the header on a metal shaft, you have torsion. If they run parallel to the tracks, you have extension.
If a spring is broken, you can still measure it, but you need to measure the pieces correctly. If the spring is intact, the job is usually easier because you can confirm dimensions in one pass.
Safety first before you measure
Garage door springs store a serious amount of energy. Measuring does not always require removing tension, but you should never loosen set screws, disconnect lift cables, or disassemble spring hardware unless you know exactly what you are doing.
For torsion systems, the safest approach is to measure visible dimensions with the door closed and leave the spring installed. For extension systems, measure with the door fully open and secured so the springs are stretched as little as possible. Unplug the opener either way so the door cannot cycle unexpectedly.
Wear gloves and eye protection. Use a tape measure and caliper if you have one, or a tape measure and a printed wire gauge chart if you do not. A little extra care here is cheaper than ordering the wrong spring twice.
How to measure garage door springs for torsion systems
Torsion spring sizing comes down to four core specs: wire size, inside diameter, overall length, and wind direction. You also need to know whether the door uses one spring or a matched pair.
Measure the wire size
Wire size is one of the most commonly missed measurements. Do not try to eyeball a single coil. Measure 20 coils and 40 coils, then divide each measurement by the number of coils to confirm the result.
For example, if 20 coils measure 5 inches, the wire size is 0.250. If 40 coils measure 10 inches, that confirms the same size. If your two calculations do not match closely, measure again. Dirt, paint buildup, and tape placement can throw this off.
This step matters because wire size directly affects cycle life and lifting force. A spring that looks similar can behave very differently if the wire diameter is off.
Measure the inside diameter
Most torsion springs have the inside diameter stamped or printed on the winding cone. Common residential sizes include 1 3/4 inches and 2 inches. If the stamp is missing or unreadable, measure the opening straight across the inside of the coil, not the outside.
Do not estimate based on the shaft size. The shaft and spring diameter are related, but they are not the same thing. Measure the spring itself.
Measure the overall length
Measure the spring from one end of the coil to the other. Do not include the cones in this number. On an unbroken spring, this is simple. On a broken torsion spring, measure each piece of coil only, add them together, and exclude any gap created by the break.
Length can change slightly with wear, so a small difference is not unusual. Still, you want the measurement as close as possible. A spring that is substantially too long or too short will not deliver the correct torque.
Determine the wind direction
Torsion springs are either left-wound or right-wound. This does not refer to which side of the door the spring sits on in casual terms. It refers to the direction the coils run.
If the end of the spring points up and to the right, it is a right-wound spring. If it points up and to the left, it is left-wound. On a standard two-spring setup, the spring on the left side of the center bracket is usually right-wound, and the spring on the right side is usually left-wound. Still, verify by looking at the coil direction rather than assuming.
How to measure garage door springs for extension systems
Extension springs are measured differently. The key details are spring length, spring diameter, and pull weight. You may also need the end type, since extension springs can use different loop or clip configurations.
Measure the spring length
With the garage door in the open position and the spring relaxed as much as possible, measure the body of the spring from one end of the coil to the other. Do not include the loops or hooks unless the manufacturer specifically sizes by overall length with ends included. For most replacements, the coil body length is the important number.
If the spring is broken, measure both sections and combine them, excluding any stretched or distorted end areas if they are clearly damaged.
Measure the outside diameter
Extension springs are typically identified by outside diameter rather than inside diameter. Measure straight across the outside of the coil. Common sizes vary, so take the actual number instead of relying on a guess from the old color code.
Confirm the lifting capacity
This is the part that matters most with extension springs. Many are color-coded by pull weight, but paint fades, and not every spring in the field still matches its original finish. If the color is clear and standard, it can help. If not, weigh the door or check the old spring markings.
The correct spring must match the door weight and door height. If the weight is wrong, the door will not stay balanced. It may drift, feel too light, or overload the opener.
What to do if the spring is broken or missing labels
A broken spring does not make the job impossible. It just means you need to slow down. Measure the coil sections carefully, double-check wire size over multiple coils, and inspect both springs if the door has a pair. On two-spring systems, both springs should generally be replaced together because they wear together.
If labels are gone and dimensions are unclear, the door itself can help fill in the gap. Door height, door width, track radius, drum size, and door weight all affect spring selection. For a technician, that is routine information. For a homeowner, it is often easier to record every visible detail and verify before buying.
This is where exact replacement and proper conversion are two different things. An exact match is ideal when the original setup was correct. But if the door has always been poorly balanced, a different spring specification may actually be the right fix.
Common measuring mistakes that lead to wrong orders
The biggest mistake is measuring a single coil for wire size. That is rarely accurate enough. Measuring 20 and 40 coils gives you a real number you can trust.
The next issue is including cones in torsion spring length or loops in extension spring body length when you should not. That can shift the size enough to create problems after installation.
Another common miss is assuming both springs are identical without checking. On many residential systems they are, but not always. Some doors use different spring configurations, especially if they were modified over time.
Finally, do not select a spring by appearance alone. Springs with similar diameters can have completely different wire sizes, torque ratings, and service life. Close is not good enough here.
A quick note on performance, not just replacement
If your old springs failed early, it is worth thinking beyond a basic one-for-one swap. Spring cycle life, door balance, roller condition, and vibration all work together. A garage door that is loud or rough in motion may have more going on than a single broken part.
That is why parts quality matters. OEM-grade components and properly matched springs usually mean smoother travel, less stress on the opener, and fewer repeat repairs. If the goal is not just getting the door moving again but getting it to run better, accurate measurement is the first step.
When to call for verification
If you can measure the spring but are not fully confident in the result, stop before ordering. A few minutes spent verifying wire size, wind, or weight beats installing the wrong spring and chasing balance problems afterward.
For many buyers, the smartest move is to gather the dimensions, note the door size and spring type, and confirm the spec before purchase. That is especially true for heavier insulated doors, custom wood doors, and any setup that does not look standard.
Getting the measurement right is what turns a repair from trial and error into a fix that lasts. When the numbers are correct, the door works the way it should - smoother, quieter, and without fighting the opener every cycle.
