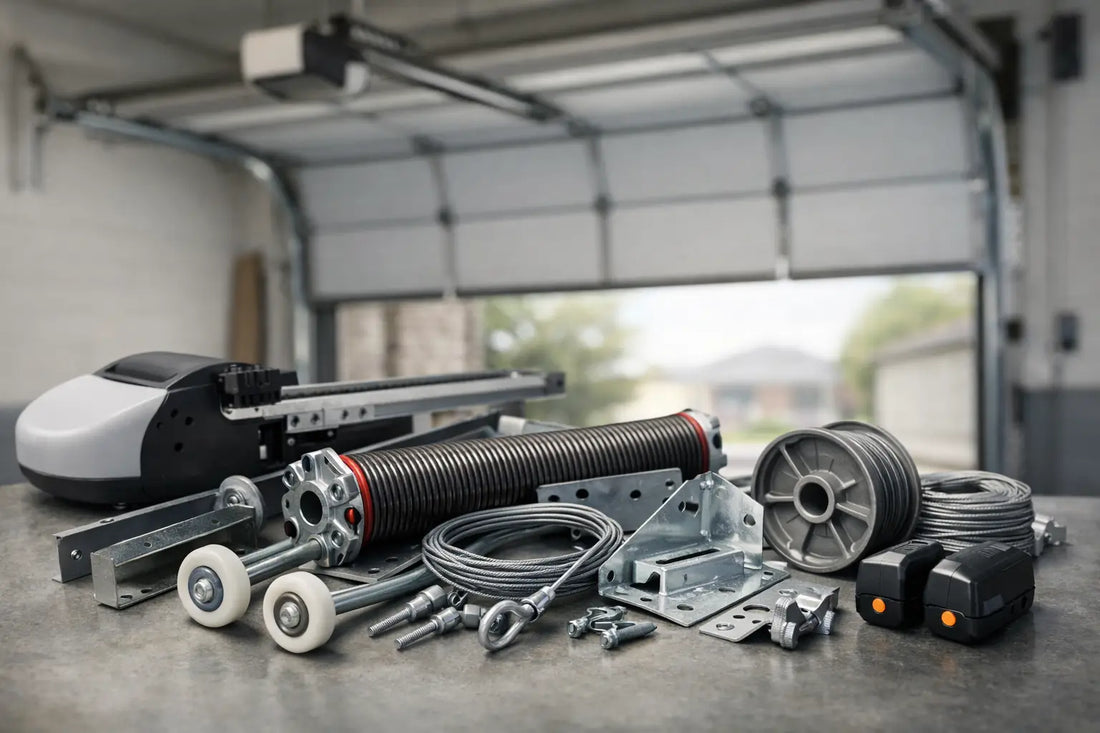

Garage Door Parts Diagram Explained
When a garage door starts jerking, grinding, or going crooked, guessing at the part name slows everything down. A good garage door parts diagram gives you a clear way to identify what you are looking at, describe the problem correctly, and order the right replacement the first time.
That matters because most garage door issues are not random. They usually trace back to a small group of wear points - springs, rollers, hinges, bearings, cables, tracks, and opener hardware. If you know where each part sits and what it does, you can move from symptom to solution much faster.
How to read a garage door parts diagram
Most diagrams break the system into three sections: the door itself, the counterbalance hardware, and the opener. That layout helps because a noisy door, a heavy door, and a door that will not close all point to different areas.
The door section usually shows panels, hinges, rollers, brackets, and tracks. The counterbalance section covers torsion springs or extension springs, cables, drums, shafts, center bearing plates, and end bearing plates. The opener section includes the rail, trolley, arm, motor unit, and safety sensors.
If you are a homeowner, start with the symptom and work backward. If the door rattles, look at rollers, hinges, track fasteners, and vibration points. If it feels too heavy or will not stay balanced, focus on the spring system. If the opener runs but the door does not move correctly, inspect the trolley, arm connection, and travel hardware.
The main parts shown on a garage door parts diagram
A sectional residential door has more moving parts than most people realize. Each one affects safety, noise, and service life.
Door panels and end stiles
The panels are the visible sections of the door. They are joined by hinges so the door can bend through the track radius as it opens. At the edges of the panels, the end stiles provide mounting points for hinges and roller brackets.
When a panel is cracked or the stile is damaged, hardware can loosen or shift out of alignment. That often shows up as uneven movement, excess vibration, or rollers that do not track cleanly.
Hinges and brackets
Center hinges connect panel sections across the width of the door. End hinges sit near the edges and support the roller stems. Bottom brackets mount at the lower corners and connect to the lift cables.
This is one area where the diagram matters a lot. Hinges are often numbered, and those numbers correspond to the door section position. Using the wrong hinge can change roller spacing and throw off alignment.
Bottom brackets deserve extra caution. They are attached to the cable system and stay under spring tension when the door is closed. They are not a casual DIY part.
Rollers
Rollers guide the door through the tracks. On a parts diagram, they appear at the edge of every panel section. Worn rollers are one of the most common causes of noise, wobble, and rough travel.
Not all rollers perform the same way. Standard steel rollers can be durable, but they tend to be louder. Nylon rollers usually run quieter and can reduce metal-on-metal contact. If the goal is smoother, quieter operation, rollers are often one of the first upgrades worth considering.
Vertical tracks, horizontal tracks, and flag brackets
Vertical tracks guide the door upward from the floor. Horizontal tracks carry it back along the ceiling once it clears the opening. Flag brackets and jamb brackets anchor the track system to the framing.
Tracks are often blamed when the real issue is elsewhere. Unless a track is bent, loose, or visibly misaligned, the problem may actually be a worn roller, damaged hinge, or door imbalance. A garage door parts diagram helps separate those possibilities before you buy the wrong part.
Torsion springs, shaft, drums, and cables
On most modern residential systems, the torsion assembly sits above the door opening. The spring or springs mount on a steel shaft. Cable drums sit near each end. Lift cables run from the bottom brackets up to the drums.
This is the part of the system that does the heavy lifting. The springs store energy and counterbalance the weight of the door. When the spring sizing is correct, the opener is not lifting the full door weight. It is guiding a balanced system.
If the door feels unusually heavy, slams shut, or rises unevenly, the diagram should push your attention here first. A broken spring, frayed cable, worn bearing, or incorrect drum setup can all create similar symptoms. The fix depends on identifying the exact failed part.
Bearing plates and center support
The center bearing plate supports the torsion shaft near the middle. End bearing plates support the shaft at both ends. These parts do not get as much attention as springs or rollers, but they matter.
When bearings wear out, the shaft can bind, squeal, or develop extra play. That adds friction and noise and can shorten the life of other components. In a system with persistent vibration, bearing wear is often part of the story.
Extension spring parts
Some older or lighter doors use extension springs instead of torsion springs. In a diagram, these springs run alongside the horizontal tracks. You will also see pulleys, sheaves, safety cables, and lift cables.
Extension systems can work well, but they generally have more moving connection points and can be noisier. If a door with extension springs is shaking, rattling, or wearing unevenly, the issue may involve multiple small parts rather than one obvious failure.
Opener rail, trolley, arm, and sensors
The opener is only one part of the full system, but it gets blamed for a lot of problems caused by worn door hardware. A diagram of opener parts usually includes the motor head, rail, trolley or carriage, straight and curved door arms, header bracket, hanging brackets, and photo eyes.
If the opener strains, chatters, or reverses unexpectedly, inspect both the opener parts and the door hardware they are trying to move. An opener attached to an unbalanced or high-friction door will wear faster no matter how good the motor is.
Why the diagram matters before you buy parts
A parts diagram helps you do more than name components. It helps you avoid mismatch.
Garage door hardware is not universal in every detail. Roller stem length, hinge number, spring dimensions, drum type, track radius, bearing size, and opener attachment hardware all have to match the application. Two doors may look similar from the driveway and still use different parts.
That is why symptom-only shopping can waste time. Ordering "a cable" or "a hinge" without checking the diagram and the existing hardware can create a second repair instead of solving the first one. For homeowners, that means more downtime. For technicians, it means return trips and lost efficiency.
Common problems a diagram helps you pinpoint
If the door is loud, the likely suspects are rollers, hinges, bearings, loose fasteners, and general vibration between metal components. If the door is crooked, look closely at cables, drums, bottom brackets, and track alignment. If it is heavy or will not stay in place halfway open, the spring system is the first place to check.
Sometimes the issue is not a failed part but a performance gap. A door can technically work while still producing too much noise, vibration, and wear. In those cases, the diagram helps identify upgrade points, not just broken parts. Better rollers, tighter hardware interfaces, and vibration-reducing components can make a noticeable difference in day-to-day operation.
That is especially true in attached garages where noise travels into living space. A smoother door is not just nicer to hear. It also reduces repeated stress on hinges, tracks, fasteners, and opener components.
What a garage door parts diagram cannot tell you
A diagram shows location and relationship. It does not confirm condition, sizing, or safe handling requirements.
For example, a diagram can show where the torsion spring sits, but it cannot tell you whether the spring is the correct wire size, inside diameter, and length for the door weight. It can show the bottom bracket, but it cannot replace the safety judgment needed when working around loaded cables and spring tension.
That is the trade-off. Diagrams are excellent for identification and planning, but some repairs still require measurements, experience, and caution. Springs, cables, and bottom bracket assemblies are the main examples where accuracy and safety matter most.
Using the diagram to make quieter, longer-lasting repairs
The best repair is not always the cheapest single part. It is the fix that addresses the root cause.
If one roller fails because the door is vibrating excessively, replacing only that roller may get the door moving again, but it may not solve the noise or prevent the next wear point. The better approach is to use the diagram to inspect related parts in the same load path - hinge, bracket, track attachment, bearing support, and any points where metal is chattering under movement.
That is where a performance-minded approach pays off. The Garage Door Center focuses on parts that restore function and improve operation, especially in systems where noise and vibration are recurring complaints. When you can identify the full hardware layout, you can make a repair that lasts longer and runs cleaner.
A garage door does not need every part replaced to work better. It usually needs the right part identified early, before wear spreads to the rest of the system. Start with the diagram, match the hardware correctly, and let the door tell you what needs attention next.
